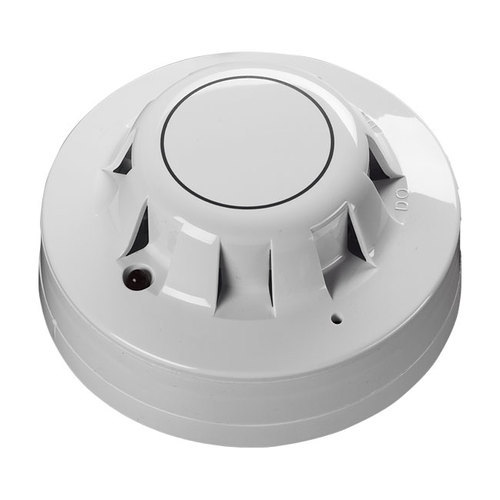

Asenware Fire Alarm Smoke Detector

Asenware Fire Alarm Smoke Detector uses a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with the most conventional fire alarm panel.

Operating Voltage Range: 9 to 28 VDC Non-polarized
Standby Current: ≤120uA@24VDC
Maximum Alarm Current(LED on): ≤15mA@24VDC（1K Ohm current-limiting resistance）
Operating Humidity Range: ≤95%RH(40℃±2℃)RelativeHumidity, Non-condensing
Operating Temperature Range: -10℃ to 50℃(14ºF to 122ºF)
Smoke Alarm Sensitivity: 0.1-0.15dB/m
Height: 48.2mm installed in Base

Asenware Fire Alarm Smoke Detector Suitable place for smoke Detector.

Where is the smoke detector, one of the fire fighting equipment, suitable for installation? Many people don’t know. Here is a brief introduction to the places where smoke detectors are applicable:
Halls, bedrooms, offices, etc. of restaurants, hotels, teaching buildings, and office buildings;
Electronic computer room, communication room, movie or TV projection room, etc.;
Stairs, walkways, elevator machine rooms, etc.;
Book stacks, archives, etc.;
Places with electrical fire hazards.
